RS-USB602FC

Product Details

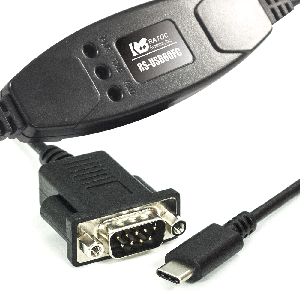

USB(Type-C) to Serial(DB9) Converter

RS-USB602FC

Connect RS-232C serial devices such as barcode scanner,... with serial interface via this converter.

This product is the Japanese version,
but it works on English version of Windows.
You can download Japanese User's Manual(pdf) and Drivers.

RS-USB602FC is a USB to serial converter.
Compatible with Universal Serial Bus specification Rev. 2.0.
Up to 230.4Kbps data transfer rate.
Standard USB (Type-C Male) connector.
Easy to connect to PC.
Virtual COM port driver.
RS-USB602FC can be used with FTDI's VCP drivers to provide a COM port on a PC.
LED indicators.
RS-USB602FC has "PWR/TXD/RXD" LED indicators for monitoring communication status.
PWR: power / TXD: transmit / RXD: receive
Bus powered. no need external power supply.

Host machine
Windows PC with free Standard USB Type-C port.
Supported Operating System
Windows 11, Windows 10,
Windows Server 2025, Windows Server 2022, Windows Server 2019,
Android OS,
Raspberry Pi OS

Items	Specification
Serial Input/Output level	RS-232C level
USB Specification	USB(Universal Serial Bus) Specification Rev. 2.0
Connector	USB ：Standard USB Type-C male RS-232C：D-Sub9 male (with anchor [#4-40])
Number of I/O ports	1 port
Unit Dimensions	3.35[L] x 1.1[W] x 0.43[H] in (85[L] x 28[W] x 11[H] mm)
Cable Length	Approx. 2.83 ft (85 cm)
Weight	0.194 oz (55 g)
Data transfer mode	Asynchronous (Start stop synchronization)
Data transfer Rate (Baud)	300/600/1,200/2,400/4,800/9,600/19,200/38,400 57,600/115,200/230,400 bps
Transmit Distance	Within 50ft (15m)
Power Voltage	DC+5V (Powered from USB Bus)
Power Consumption	Average: 14mA(5V) Max.: 22mA(5V) Suspended: 1mA
Serial Parameter	Data bit: 7/8 Start bit:1 Stop bit: 1/2 Parity bit: even/odd/none
RS-232C connector	D-SUB 9PIN RS-232C connector Male ANSI/EIA/TIA-574
LED Indicators	PWR：Power LED If the power from USB bus is properly supplied 5V, this indicator LED will be on. TXD：Transmit data indicator (Host to Device) RXD：Receive data indicator (Device to Host)
Operating Environment	Temperature: 32ºF to 122ºF (0ºC to 50ºC) Humidity : 10 to 90% (non condensing)
Storage Environment	Temperature: -4ºF to 149ºF (-20ºC to 65ºC) Humidity : 10 to 90％ (non condensing)
