RS-USB602F
Product Details

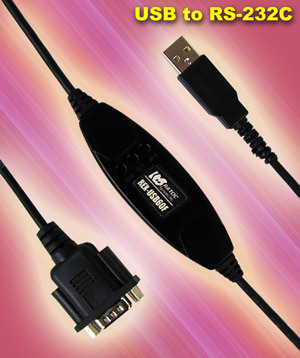

USB(Standard A type) to Serial(DB9) Converter
RS-USB602F
Product overview
Connect RS-232C serial devices such as barcode scanner,... with serial interface via this converter.
This product is the Japanese version,
but it works on English version of Windows.
You can download Japanese User's Manual(pdf) and Drivers.
Features
- RS-USB602F is a USB to serial converter.
Compatible with Universal Serial Bus specification Rev. 2.0. - Up to 230.4Kbps data transfer rate.
- Standard USB (A type Male) connector.
Easy to connect to PC. - Virtual COM port driver.
RS-USB602F can be used with FTDI's VCP drivers to provide a COM port on a PC. - LED indicators.
RS-USB602F has "PWR/TXD/RXD" LED indicators for monitoring communication status.
PWR: power / TXD: transmit / RXD: receive - Bus powered. no need external power supply.
- Host machine
Windows PC with free Standard USB A type port. - Supported Operating System
Windows 11, Windows 10,
Windows Server 2025, Windows Server 2022, Windows Server 2019,
Android OS,
Raspberry Pi OS
Specifications
| Items | Specification |
|---|---|
| Serial Input/Output level | RS-232C level |
| USB Specification | USB(Universal Serial Bus) Specification Rev. 2.0 |
| Connector | USB ：Standard USB Type A male RS-232C：D-Sub9 male (with anchor [#4-40]) |
| Number of I/O ports | 1 port |
| Unit Dimensions | 3.35[L] x 1.1[W] x 0.43[H] in (85[L] x 28[W] x 11[H] mm) |
| Cable Length | Approx. 2.83 ft (85 cm) |
| Weight | 0.194 oz (55 g) |
| Data transfer mode | Asynchronous (Start stop synchronization) |
| Data transfer Rate (Baud) | 300/600/1,200/2,400/4,800/9,600/19,200/38,400 57,600/115,200/230,400 bps |
| Transmit Distance | Within 50ft (15m) |
| Power Voltage | DC+5V (Powered from USB Bus) |
| Power Consumption | Average: 14mA(5V) Max.: 22mA(5V) |
| Serial Parameter | Data bit: 7/8 Start bit:1 Stop bit: 1/2 Parity bit: even/odd/none |
| RS-232C connector | D-SUB 9PIN RS-232C connector Male ANSI/EIA/TIA-574 |
| LED Indicators | PWR：Power LED If the power from USB bus is properly supplied 5V, this indicator LED will be on. TXD：Transmit data indicator (Host to Device) RXD：Receive data indicator (Device to Host) |
| Operating Environment | Temperature: 32ºF to 122ºF (0ºC to 50ºC) Humidity : 10 to 90% (non condensing) |
| Storage Environment | Temperature: -4ºF to 149ºF (-20ºC to 65ºC) Humidity : 10 to 90％ (non condensing) |
Others
- Japanese User's Manual
- Driver for RS-USB602F Series (Windows 11/10, Windows Server 2025/2022/2019)
RS-USB602F Windows 11/10 ... Driver download site(Japanese) - Driver for RS-USB602F Series (Windows 8.1/7, Windows Server 2016/2012R2/2012/2008R2)
RS-USB602F Windows 8.1/7 ... Driver download site(Japanese)
