Product overview

Product overview

• S/PDIF Converter board for Raspberry Pi I2S output.
• Onboard TI(BB) SRC4392 Sampling Rate Converter and onboard master clock modules make accurate S/PDIF and I2S digital Audio output.
• Accept 192kHz/24bit LPCM I2S format Digital Audio signal from Raspberry Pi.
• S/PDIF coaxial, optical and 3.3V CMOS output.
• Makes jitter less and noise free resampled I2S output signal with master clock.
• Supports input-to-Output Sampling Frequencies up to 192kHz.
• Available up sampling from 44.1kHz to 192kHz.
• Two independent X-tal module, 24.576MHz and 22.5792MHz for Audio Clock.
• Onboard Low Noise Linear regulators provide 1.8V and 3.3V to SRC4392 Core and IO I2C control input to control SRC4392 registers and select Master Clock.
• Digital isolators for I2S input and I2C cut Power/GND loop and noise from Raspberry Pi.

Product Features

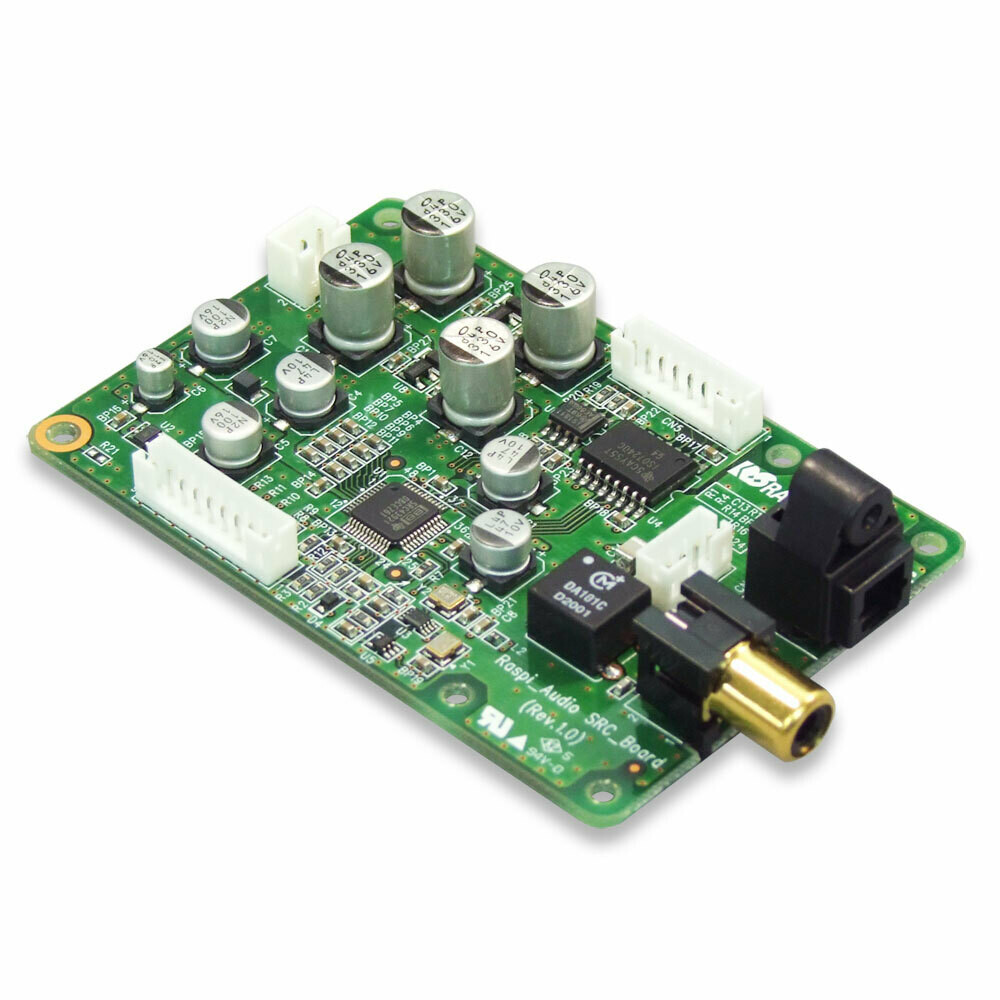

High quality Audio Sampling Rate Converter board for Raspberry Pi 3B/3B+.

Onboard TI SRC4392 chip accepts I2S signal from Raspberry Pi and converts to accurate S/PDIF output and clean I2S output signal with master clock for DAC. Listen and enjoy jitter-free fine MUSIC.

RAL-SRC4392P provides user-friendly connector layout and mounting holes.

Easy-to-use connector layout provides easy installation into Audio equipment enclosure or stacking on Raspberry Pi 3B.

Three independent S/PDIF output.

RAL-SRC4392P has three different type S/PDIF output. One is coaxial output(RCA Jack) isolated with Digital Isolation trans. Second one is a Optical(Toslink) transmitter. Last one is 3.3V CMOS digital signal and Digital Isolation trans secondary winding for external terminal. AES 3.3V CMOS output is also available at CN4_connector.
