Product overview

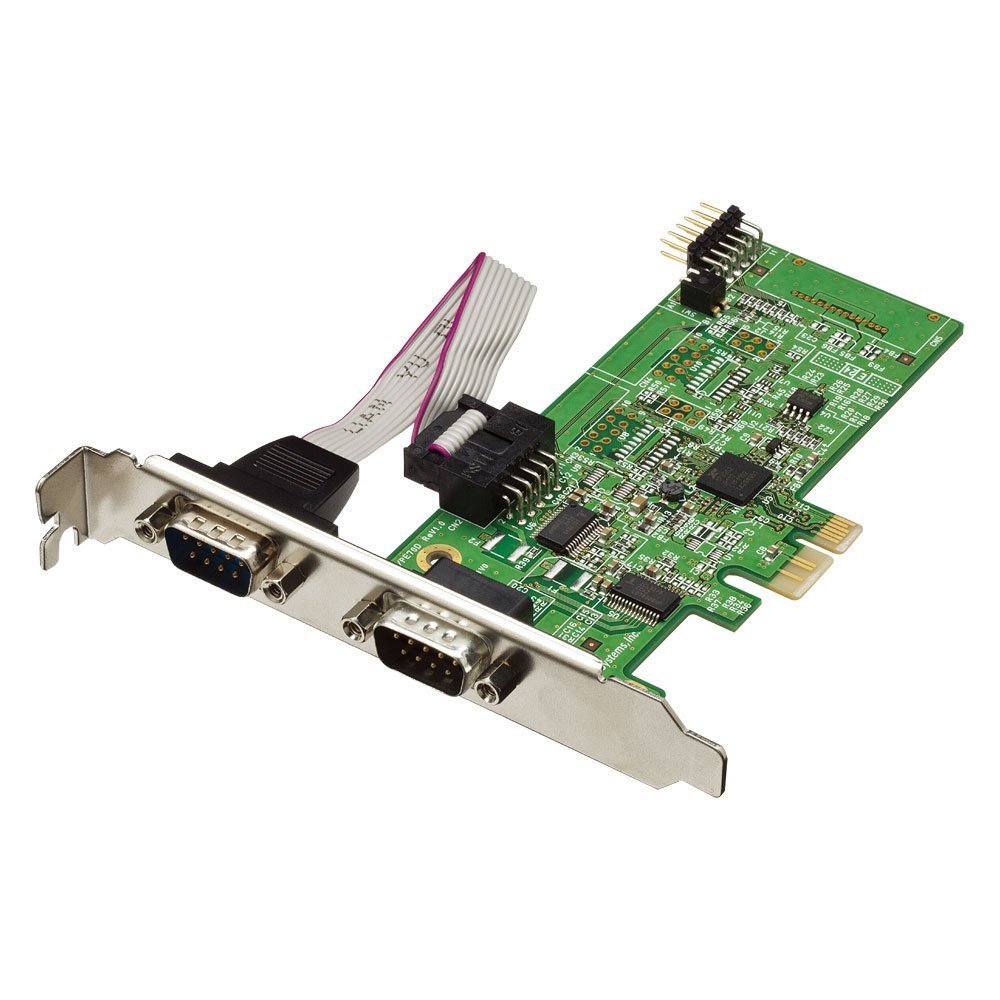

PE60D PCI Express board provides RS-232C x 2ports & 6bit Digital I/O x 1port.

This product is the Japanese version, but it works on English version of Windows.
Please note all documents including user's manual as well as software are Japanese.

Features

• Multi-function board with COM ports and digital I/O ports.
-Only this 1 PCI Express board provides multi-functions(RS-232C x 2ports & 6bit Digital I/O x 1port)




• DB9in connector mounted, sample source codes included.


-Industry standard DB9pin connector(Male) adopted.


-Enables to connect RS-232C devices such as UPS's, modems, magnetic card readers by using
cables available through the market.
Widely applicable in measurement field such as electrical scales, control field such as sequencers,
NC[Numerical Control] machines.
-RS-232C communication sample programs for VC++2010、VB2010、VC++6.0、VB6.0 included.




• DIO port mounted, sample source codes included.

-As 6bit DIO port is mounted, there is no need to purchase an expensive DIO interface.

Driver to control DIO port, DLL, sample source codes(VC++6.0、VB6.0) included.
With an optional accessory cable and bracket(Model name:RCL-60D), DIO port mounted can exceed outside a PC, as shown below. For further information, see the optional accessory.





• Can add 4 boards into 1 PC.

-Industry standard DB9pin connector(Male) adopted.
-By acquiring an unique ID at DIP switch mounted on the PCBA, 4 boards can be recognized by
software. Sample source codes are included to confirm COM port number assigned to each
RS-232C port(VC++2010,VB2010,VC++6.0,VB6.0).

*The number of boards which can be added into 1 PC depends the number of slots available
in the PC.
*COM port number will be automatically assigned on OS.

• Compatible with Low-Profile bracket.

-Compatible with standard PCI Express slot and Low-Profile slot.
By just replacing the standard bracket, you can use as Low-Profile PCI Express board.
The best choice for slim PC's.

▼For standard PC, 2 ports are available▼

▼For Low-Profile PC's, 2 options are available▼

• Max DTE communication speed 921.6Kbps at each port.
• Electro-static discharge(ESD) protect circuit is mounted.
  Transceiver with protect function is mounted(Aerial discharge +/- 15KV, Contact discharge+/- 8KV).
  Latch up won't happen.
• Supports Windows Server OS
  Compatible with Windows Server 2012 R2/Server 2012/Server 2008 R2/Server 2008/Server 2003 R2/Server 2003/2000 Server
• FIFO buffer(256 bytes for transmit/receive respectively) at each port
  At each port, FIFO(First-In First-Out) buffer is mounted with transmit 256bytes, receive 256bytes.
  This enables to prevent data from not being received at high communication, which results in stable communication environment.
• Non-use of RoHS 6 Restricted Substances
  As PE60D is free from 6 hazardous substances:Pb, Hg, Cd, Cr(VI), PBB, PBDE, it is eco- & human- friendly product.

Hardware Specifications

But interface	PCI Express Rev.2.0
Serial Controller	Memory map type 16550 compatible UART
Connector	DB 9pin(Male) ×2port, DIO（6bit）×1port
RS-232C input/output level	【Transceiver】High level output ： +5V（min)/+5.4V(TYP), Low level output ： -5V(min)/-5.4V(TYP) 【Receiver】Voltage range ： -15V～+15V
Communication method	Asynchronous communication
Communication speed	300／600／1200／2400／4800／9600／19200／38400 ／57600 ／115200／230400／460800／921600bps *Feasible maximum communication speed depends on PC specifications
Communication parameter	Start bit：1 bit Parity bit：Even/Odd/None Data bit：7/8 bit Stop bit：1/2 bit
Transceiver・Receiver	MAX3245ECAI+ / ICL3245ECAZ（ or compatible IC）
DIO input/output level	0V～+3.3V（Active High）
Board ID	When more than one PCI60D/PE60D, PCI64D/PE64D, PCI70D/PE70D are used, DIP switch on the board enables to recognize each board (Up to 4 boards).
Electro-static discharge(ESD) protect	Aerial discharge +/- 15KV　Contact discharge+/- 8KV
transmission distance	Within approx. 50ft (15m)
Dimension	Approx.4.72 in x 2.32 in (Approx.119.91mm×58.91mm)(Excludes protrusion)
Weight	Approx 2.3 oz (Approx 65g)（when standard bracket is used)
Power voltaeg	+3.3V (Supply from PCI Express bus)
Accessories	PCI Express board(×1) Low Profile bracket (×2) Software CD-ROM Japanese User's Guide Japanese Warranty Card(1 year)
Bundled software	Sample program for RS-232C communication, Serial communication drivers, Sample program for recognition of boards, Sample program for DIO control

Bundled Software Specifications

Item	Content of specifications
Communication sample program	Sample program for RS-232C communication (VC++2010,VB2010,VC++6.0,VB6.0)
Sample program for recognition of boards	Sample program for DIP switch on board and reading port (VC++2010,VB2010,VC++6.0,VB6.0)
Sample program for DIO control	Sample program for DIO control (VC++6.0,VB6.0)
Serial communication drivers DIO control drivers	Device drivers for PE60D

Hardware Specifications
■RS-232C connector pin assignment

Pin#	Signal name	Function	DTE-External
1	DCD	Data Carrier Detected	<<
2	RD	Received Data	<<
3	TD	Transmitted Data	>>
4	DTR	Data Terminal Ready	>>
5	SG	Signal Ground	-
6	DSR	Data Set Ready	<<
7	RS	Request to Send	>>
8	CS	Clear to Send	<<
9	RI　*	Ring Indicator	<<

*By changing the mounted part on the board, it enables to output 5V from 9 pin(RI).
Please ask from the Support Request Form.
http://www.ratocsystems.com/english/support/supportmail.html

■Corresponding pin assignment: DB 9pin - DB25pin connector

To convert DB9pin into DB25pin, the conversion adapter based on the below table is required.
This kind of conversion adapter is available at PC shops.

DB 9pin		DB 25pin
Pin #		Pin #
1	←→	8
2	←→	3
3	←→	2
4	←→	20
5	←→	7
6	←→	6
7	←→	4
8	←→	5
9	←→	22

■DIO port and DIP switch

DIO Port
Pin #	DIO Bit	Function
1	bit0	I/O	INT
2	bit1	I/O	INT
3	bit2	I/O	INT
4	bit3	I/O	INT
5	bit4	I/O	INT
6	bit5	I/O	INT
7	-	-		DIP Switch
8		-		ID #	1	2
9		-		0	OFF	OFF
10		Power(3.3V)		1	ON	OFF
11		GND		2	OFF	ON
12		-		3	ON	ON

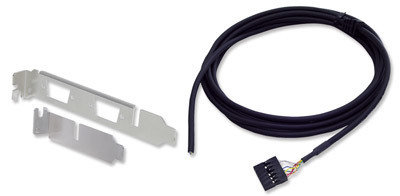

■Optional accessory: cable and bracket(Model Name:RCL-60D)

2 kinds of brackets(Standard bracket and Low Profile bracket) and DIO cable come with this optional accessory.
By using this optional accessory of cable and bracket, you can extend DIO cable and RS-232C cable
outside of a PC, as shown below.

For standard PC, replace with the optional standard bracket with notch for DIO

For Low-Profile PC, use the optional Low-Profile bracket with notch for DIO
